6061 Aluminium Flat Bus Bar

Author:Frank Time:2023-05-05

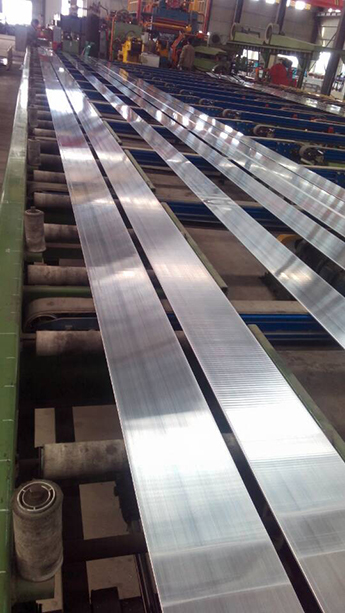

6061 Series Extruded Aluminium Flat Bar

    6061 Aluminum flat square Bar is produced in several alloys, most generally 6061 is used for structural and engineering applications or when welding is required, forming, bending or corrosion resistance is a concern. 2024 and 7075 are alloys for high strength applications when no welding or very limited forming or bending is required. 6063 is the lowest strength of these alloys, but tends to anodize the best and also has the best finishing qualities. Aluminum Supply stocks 6061T6 but we will special order any alloy in any size and custom cut to size to meet your requirements.


Chemical composition according to EN573-3  (weight%, remainder Al)

Si Fe Cu Mn Mg Cr Zn Ti Remarks Each Total
0.40-
0.80
Max. 0.7 0.15-
0.40
Max.
0.15
0.8-
1.2
0.04-
0.35
Max 0.25 Max 0.15   Max 0.05 Max 0.15


Basic info:
Model No : 6061;
Shape : flat;
Grade : 6000 series;
Application : Door & Window, Decorations,Heat Sink,Glass Wall, Transportation Tools;
Temper : T3-T8;
Alloy : Alloy;
Surface Finishing : Mill Finish;
Alloying Ingredient : 6061;
Certification : ISO;
Export Markets : Global;


Mechanical properties according to EN755-2

Temper* Thickness
 e**
Yield stress
Rp0.2 (mpa)
Tensile strength
Rm (mpa)
Elongation
A[%]
Elongation
A50mm [%]
Hardness **
HB
T4 e<=25 110 180 15 13 65
T6 e<=5 240 260 9 7 85
5 240 260 10 8 85

Physical properties (approximate values, 20℃)
Density
[kg/m3]
Melting range
[℃]
Electrical
Conductivity
[MS/m]
Thermal
Conductivity
[W/m.K]
Co-efficient of
Thermal expansion 10-6/k
Modulus of elasticity [GPa]
2700 585-640 22-30 170-200 23 ≈70

Properties
Aluminium and Copper Specifications

Parameters Aluminium Copper
Relevant Standards IEC 60105
ISO 209-1,2
IEC 60028
Physical Properties
Chemical Composition
Specific Heat     gm.cal/℃
Density         gm/cm2
Melting Point    ℃


0.092
2.91
660

99% pure
0.220
8.89
1083
Mechanical Properties
Ultimate Tensile Strength      kgf/mm2
Ultimate Shearing Strength    kgf/mm2
Elastic Modulus             kgf/mm2
0.2% Tensile-proof Strength   kgf/mm2

20.5/25
15
6,700
16.5/22

22-26
16-19
12000
60-80% of tensile strength
Electrical Properties
Specific Resistance         ʋʊcm
Volume Conductivity       ʋʊmm2
Conductivity              % IACS
Co-efficient of expansion    mm/m/℃

3.133
31.9
57
2.3*10-5

1.7241
58
100
1.73*10-5

Additional Info:
Trademark : Signi;

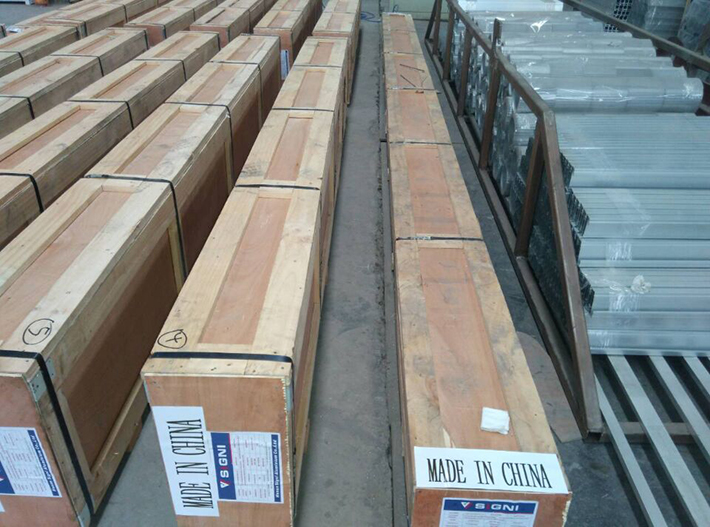

Packing : Standard Seaworthy Packing;
Production Capacity : 6000 Tons/Month;
Origin : Zhengzhou,China;
Payment Terms : L/C, T/T, Paypal, Money Gram, Western Union;
Trade Terms : FOB, CFR, CIF, FAS, FCA, EXW;

Features:
Lightweight, with smooth finish and defined edges
General purpose material
Excellent candidate for most processing techniques
Good corrosion resistance
Excellent at resisting moisture and strong for its light weight

Production Description :
Aluminum Flat Bar
Alloy : 6061;
Temper: H112, F, T3, T4, T5, T6
Thickness: Up to 200mm
Width: Up to 600mm
Length: Up to 6000mm


Alloy Grade Temper Rod Square Bar Rectangular Bar
(length*width)
6061 F.H112(R)* Φ5-300 5×5-150×150 3.0-100×10-300

Specifications:
Brinell: 95
Tensile: 45,000 +/-
Yield: 40,000 +/-
Sizes: 2ft, 4ft, 6ft, 8ft, 12ft
Thicknesses: 0.250 inch (6.35 mm)
Tensile strength: 42,000 psi (290 MPa)

Applications Areas:
Brackets, Bracing, Key stock, Ornamental
