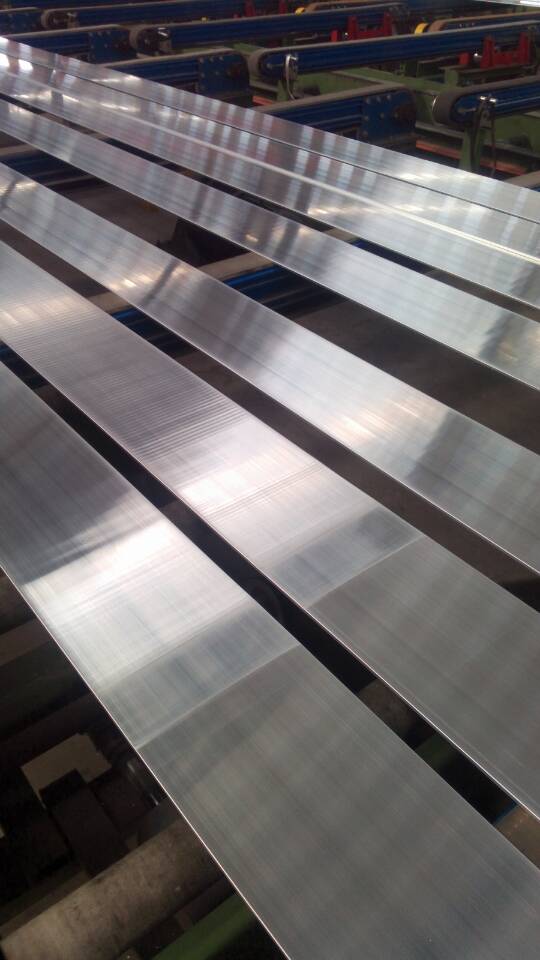

Henan signi Aluminum is China's leading manufacturer of transformer aluminum busbar. Now, due to weight and cost, high-voltage transmission lines are almost entirely aluminum. Busbars usually have copper or aluminum. However, the choice of busbars in switchboards and motor control centers is highly dependent on the advantages of location rather than material. Some countries use aluminum (unless otherwise stated), and other countries usually use copper. Henan Signi Aluminum Co., Ltd. has 600, 1000, 1800, 3500, 5000, 8000 tons of extrusion production lines; and supporting surface finishing heat treatment production line. And complete with quality testing equipment.
China aluminum bus bar manufacturer stockists
Alloy: 1070/1060/1350/6061/6063/6082
Length: up to 6 meters
Width: 10mm - 200mm
Thickness: 0.15mm - 40mm
Henan signi Aluminum aluminum busbar existing mould list die table:
China aluminum bus bar manufacturer stockists rectangular angle aluminium busbar mould list：
| Rectangular angle aluminium busbar | ||||||||||
|
3mm (thickness) |
3*15 | 3*20 | 3*25 | 3*30 | 3*40 | 3*50 | ||||
|
4mm (thickness) |
4*10 | 4*20 | 4*25 | 4*30 | 4*40 | 4*45 | 4*50 | |||
|
5mm (thickness) |
5*20 | 5*25 | 5*30 | 5*35 | 5*40 | 5*50 | 5*60 | 5*80 | ||
|
6mm (thickness) |
6*20 | 6*30 | 6*40 | 6*50 | 6*60 | 6*80 | 6*100 | 6.3*50 | 6.3*80 | ★6.3*100 |
|
7mm (thickness) |
7.6*80 | 6.3*76 | ★6.3*63 | |||||||
|
8mm (thickness) |
8*11 | 8*30 | 8*40 | 8*50 | 8*60 |
★ 8*63 |
8*80 | 8*100 | 8*120 | 8.1*74 |
|
10mm (thickness) |
10*30 | 10*40 | 10*50 | 10*60 | ★10*63 | 10*80 | 10*100 | 10*120 | 10*125 | 10*140 |
| 10*150 | 10*160 | |||||||||
|
12mm (thickness) |
★12*60 | ★12*80 | ★12*100 | 12*120 |
★ 12*125 |
12*150 |
★ 12.5*125 |
|||
|
14mm (thickness) |
★14*80 | ★14*100 | Square rod |
★ 50*50 |
★ 35*55 |
19*19 | Six angle rod | ★30 | ★40 | |
|
15mm (thickness) |
15*100 | 15*120 | Round rod | ★￠10 | ★￠12 | ￠16 | ★￠28 | ★￠32 | ★￠40 | |
|
16mm (thickness) |
★16*100 | ★16*125 | Round rod | ★￠45 | ★￠46 | ★￠50 | ★￠55 | ★￠60 | ★￠65 | |
|
20mm (thickness) |
★20*80 | ★20*100 | ★￠70 | ★￠75 | ★￠80 |
|
||||
| Round angle aluminium busbar | ||||||||
|
2mm (thickness) |
R2*20 | |||||||
|
3mm (thickness) |
R3*30 | R3*40 | R3*50 | R3*60 | R3*80 | R3*100 | R3*120 | R3*160 |
|
4mm (thickness) |
R4*25 | R4*30 | R4*40 | R4*50 | R4.7*151 | |||
|
5mm (thickness) |
R5*30 | R5*35 | R5*40 | R5*50 | R5*60 | R5*120 | ||
|
6mm (thickness) |
R6*50 | R6*60 | R6*80 | ★R6.3*63 | R6*100 | R6*120 | R6*140 | R6*160 |
|
8mm (thickness) |
R8*40 | R8*50 | R8*60 | ★R8*63 | R8*80 | R8*100 | ||
|
10mm (thickness) |
R10*50 | R10*60 | R10*80 | R10*100 | ★R10*120 | R10*125 | R10*170 | R10.4*25 |
|
12.5mm (thickness) |
★R12.5*80 | ★R12.5*125 | ★R16*120 |
|
||||
